Pressure measurement

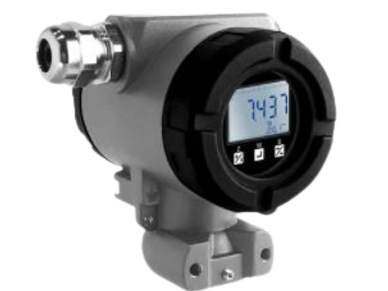

Stek P064

Stek PHM33

Stek P064

 Features:

High accuracy, anti-interference ability. For electric power and machinery manufacturing process control.
Measuring liquid, gas, vapor, liquid level.
Measuring range : 0.1 ... 25 bar
Pressure type : Differential pressure
Accuracy : 0.2% measuring range≦0.06 bar;0.1%=0.06 bar ... 0.4 bar;
0.075% measuring range≧0.4 bar
Type : Differential Pressure
Power output :4 ... 20 mA+HART®(10.5 ... 36 V, typical 24 V)
IP Rating : IP65

view details

Stek P063

Stek PHM33

Stek P064

 Features:

Welding and full-sealed construction, full stainless housing, compact size, easy installation
Sensor Type:Piezoresistive diaphragm
Measuring Range:0 ... 20 bar
Output:4 … 20 mA
Signal Connection:2-wire
Accuracy:±0.5% of F.S.

view details

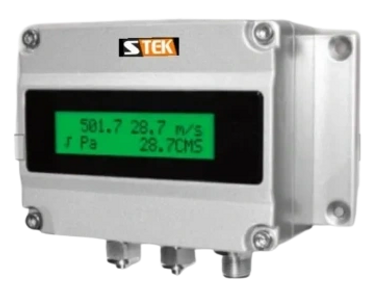

Stek PHM33

Stek PHM33

Stek PHM33

Features:

Range:0 ... 500 pa
Input:Thermo differential pressure module​
Output:0 ... 20 mA / 4 ... 20 mA / 0 ... 1 V / 0 ... 5 V /1 ... 5 V / 2 ... 10 V / 0 ... 10 V​
Accuracy:± 0.5 % of F.S.
Display:Optional

view details

Stek SD03

Stek Pitot Tube

Stek PHM33

 Features :

Industrial-grade Metal Meter/Can be connected to a 2-wire transmitter/Anti-interference Design/Multiple Input Type
Input : 4 ... 20 mA DC Temperature / Pressure / Differential pressure / Flow, etc.
Range : -1999 ... +9999
Accuracy : 0.2 % F.S

view details

Stek SD06-T

Stek Pitot Tube

Stek Pitot Tube

 Features:

High-performance Integrated Indicator Transmitter with Anti-interference Design
Input:Temperature
Output:4 ... 20 mA
Display range:-9999 ... 99999
Accuracy:<0.2%

view details

Stek Pitot Tube

Stek Pitot Tube

Stek Pitot Tube

Feature:

High temperature resistance Corrosion resistant, Anti-clogging Data convert to flow rate quickly
Duct-mounting type / Material:Stainless 316
Operating temperature:Max. 250°C
Length:4" ... 40"(100 ... 1000 mm)
Option:differencial pressure trainsmitter(Can measure flow)

view details

Stek p064

Download PDF

Stek p063

Download PDF

Stek phm33

Download PDF

Stek sd03

Download PDF

Stek sd06-t

Download PDF

Stek Pitot tube

Download PDF
