Power Quality Analysers

---

PQA03

1 Voltage Measurement

1 Current Input

Capability to use flexible clamps up to 6000A or other sensors with full scale set by the user

Buzzer for errors and alarms

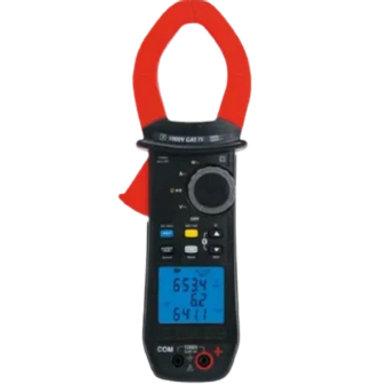

Measurements up to 1000ADC or 1,500ADC

Clamping Diameter 48mm

Analysis of harmonic orders

TrueInrush Function

Bluetooth Communications

 5 voltage inputs & 4 current inputs

 10-minute Inrush mode

 Calculation of distorting power

 IP67: all-terrain model available

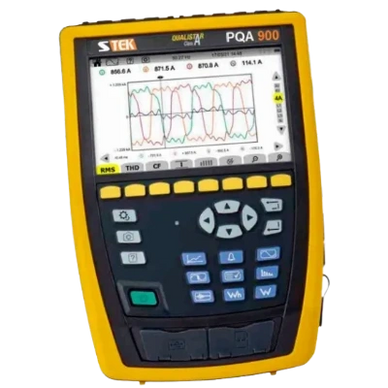

Class A Power Quality Analyser

Voltage quality diagnostics

Full Compliance with IEC 61000-4-30 Class A

Highly Communicating Instrument with user interface

Single-Phase ,Slit-Phase & Three phase installations

Installation without cutting off the main power supply

Harmonic Analysis upto 50th order

Bluetooth , Ethernet & USB Communication

Automatic recognition of  the sensors connected

Recording on SD Card

Real time communication with a PC & analysis with the dataview

5 voltage inputs & 4 current inputs

All-terrain shockproof casing resistant to UV light and high temperatures

Ideal for mounting on electricity poles Self-powered by its voltage inputs up to 1,000 V

Continuous recording at 200 ms intervals Measurements in compliance with IEEE 1459

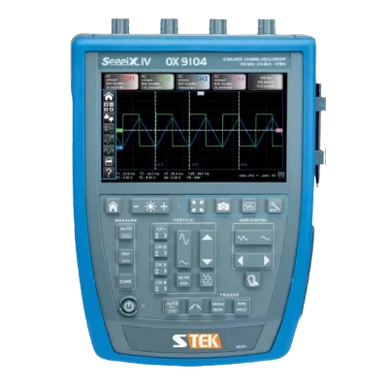

Oscilloscope , Multimeter , analyser & recorder modes with the recorded files directly viewable on oscilloscope

Channels genuinely isolated from one another and from the earth 600V CAT III & Probix probes

Ergonomics modern , hi-tech environment for oscilloscopes which are simple , compact & practical

Optimization of all the  tools communication , storage & operation

Expertise applied to all the modes , bandwidth , sampling & memory etc
