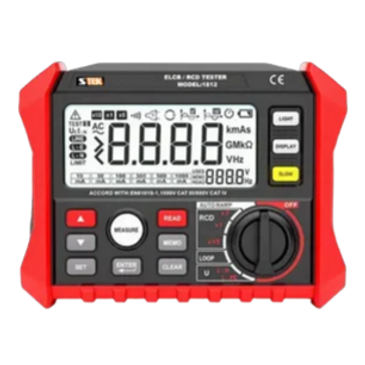

EARTH LEAKAGE CURCUIT BREAKER & RESIDUAL CURRENT DETECTOR

---

Comply with IEC/EN 61010-1 1000V CAT II,600V CAT III Safety standards

Maximum common mode voltage:600V AC RMS

Display method:it is displayed on the LCD with maximum value at 6000 counts

Measuring range selection:Auto/manual measuring range

Frequency detection:Auto

Overrange indication: ” > ”

Power consumption:100mW

Storage temperature:-20~70C

Working temperature:0~40C

Temperature factor:When the temperature is lower than 18C or above 28C the factor is per(°) x 0.05 x (appointed acuracy)

Electromagnetic compatibility:in a 3V/M RF (Radio Frequency) magnetic field,accuracy = appointed accuracy;otherwise,the accuracy is not appointed

Storage elevation:12000m

Usage elevation:2000m CAT III 600V;3000 CAT II 600V

Size:200*155*76mm,Net Weight:about 500g
